Elevator Air Conditioner With A Drainage-free And Cycle Timing Function From MS

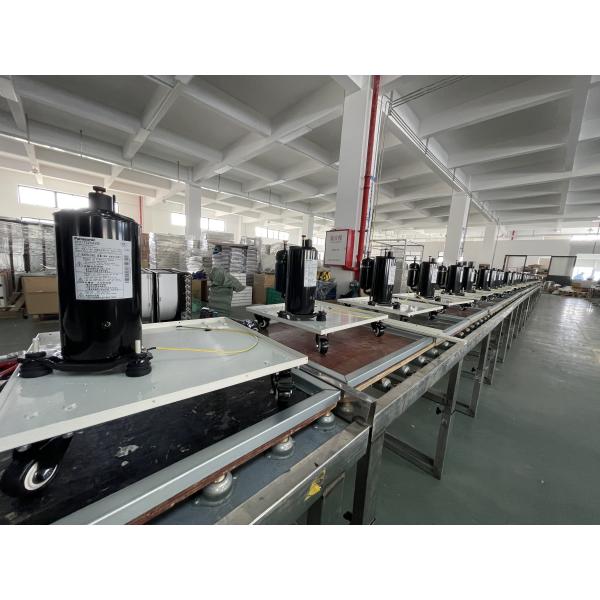

The elevator air conditioners of MS are produced in an integrated manner. The design, heat exchanger manufacturing, sheet metal processing, and assembly are all independently completed. Currently, a fixed number of containers of products are being shipped to South Korea. The prototype air conditioners for Japanese customers are about to complete the inspection. Mingsheng (MS) Company has its own laboratory.
The elevator air conditioner is a specially designed air conditioning device for the elevator car, which is used to regulate the temperature, humidity and air circulation inside the elevator to provide passengers with a comfortable riding environment. Integrated elevator air conditioner: The components such as the compressor, condenser and evaporator are integrated into a single cabinet, which is installed on the top of the elevator car. Its advantage lies in the convenient installation, as there is no need for a separate outdoor unit.
Elevator air conditioners can:
l Improve comfort: Regulate temperature, control humidity, and ensure air circulation.
l Protect equipment: Lower the temperature of equipment and prevent electrical components from getting damp.
l Enhance safety: Reduce passengers' discomfort and ensure the safe operation of the elevator.
l Enhance the property's image: Demonstrate user - friendly services and increase the added value of the property.
| serial no. | specification | technical paramter |
| 1 | Model | KC-35/DT-cooling only |
| 2 | Rated Cooling Capacity(W/BTU) | 3500 W / 11942 BTU |
| 3 | Energy Efficiency Ratio (W/W) | 2.65 |
| 4 | Rated Voltage(V) | 220 |
| 5 | Rated Frequency(Hz) | 50 |
| 6 | Rated Cooling Power(W) | 1320 |
| 7 | Rated Cooling Current (A) | 6.1 |
| 8 | Maximum Input Power(W) | 1780 |
| 9 | Maximum Input Current(A) | 8.3 |
| 10 | Allowable Pressure of Refrigeration system(MPa) | 2.7 |
| 11 | Refrigerant and Charge Amount | R410A:900g |
| 12 | Circulating Air Volume(m³) | 550 |
| 13 | Noíse dB(A) - hoistway/car | 52/40 |
| 14 | Protection Category against Electric Shock | I |
| 15 | Waterproof Grade | IPx4 |
| 16 | N.W. (kg) | 52 |
| 17 | Unit Size | 585*670*442 mm |
features:
1. Drainage - free: Thanks to the unique design of the unit, condensed water is automatically processed, eliminating the concern of air dryness caused by using the air conditioner.
2. Cycle timing function: It allows for three sets of on - off timings per day. You can set it to work cyclically from Monday to Friday, on Saturdays, or throughout the whole week.
3. Remote control function: It has a long transmission distance and a strong signal. The unit can be operated and controlled either by the remote control or the panel.
4. Comprehensive functions: It offers functions such as automatic mode, ventilation, heating, and cooling.
5. Easy to install, simple to operate, and safe and reliable.
6. Multi - layer defense purification device: It can effectively remove the turbid air inside the elevator car. It has functions of electrostatic dust collection, sterilization, mildew prevention, deodorization, and air purification.
7. Automatic temperature control to save energy.
8. Independent power supply design, which does not affect the normal operation of the elevator.
9. The unit adopts an integrated design, with no refrigerant leakage, light weight, and small size.
