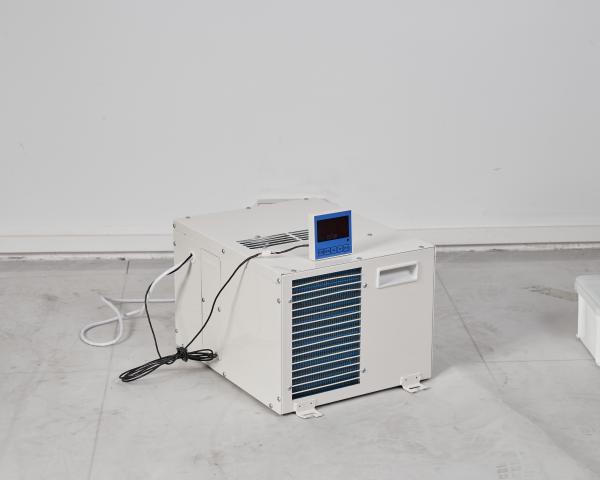

Air conditioner for villa elevators with a drainage-free and cycle timing function from MS
Air Conditioner for Villa Elevators: The air conditioner for villa elevators is a specially designed air conditioning device for the elevator cars in villas. Compared
with the air conditioners for ordinary residential elevator cars, the air conditioners for villa elevators may place more emphasis on personalized design, high-end
quality, and the matching with the overall decoration style of the villa. It can not only regulate the temperature inside the elevator but also improve the air quality,
providing passengers with a comfortable riding experience.

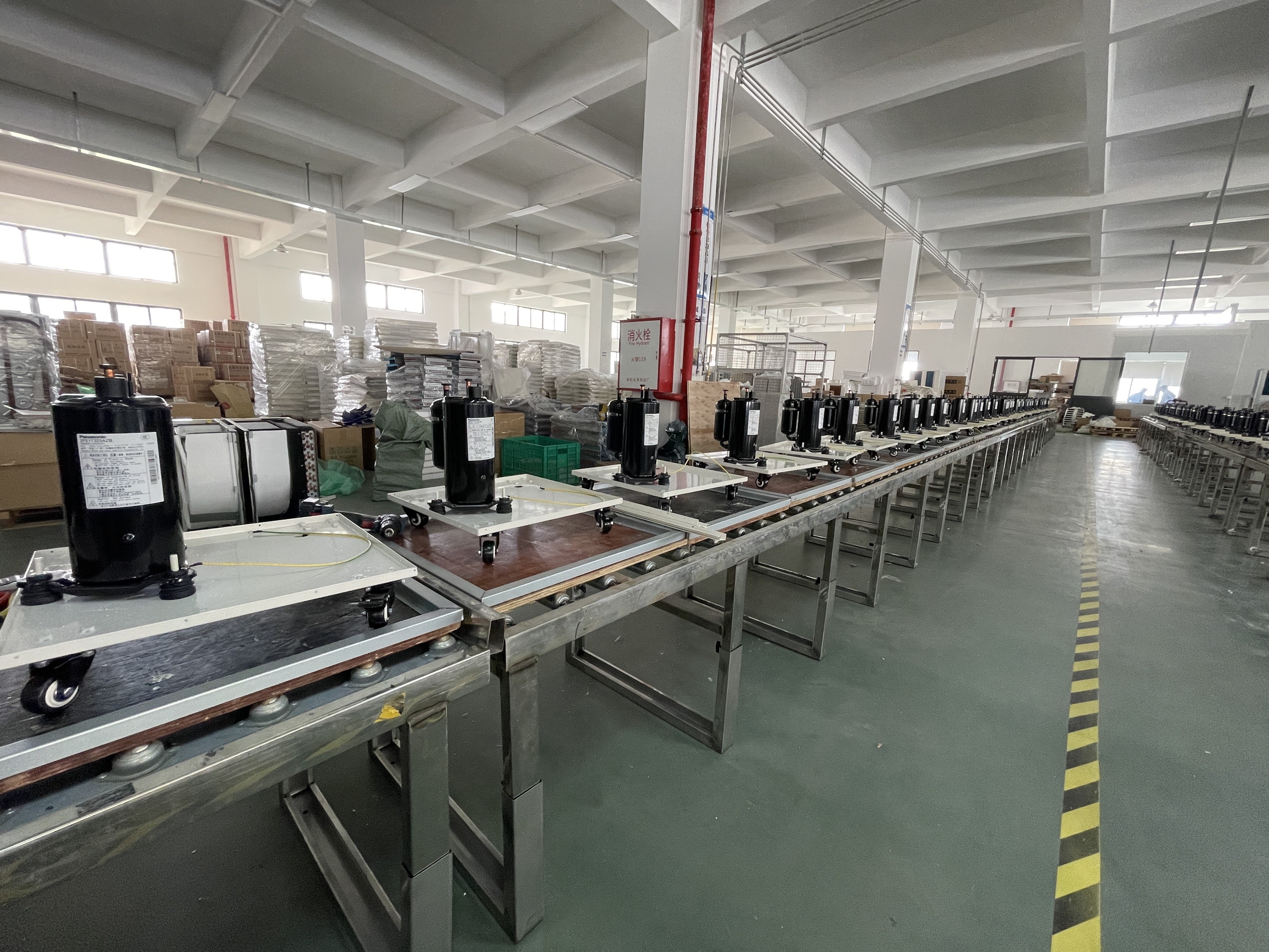

The villa elevator air conditioners of MS are produced in an integrated manner. The design, heat exchanger manufacturing, sheet metal processing, and assembly are all independently completed. Currently, a fixed number of containers of products are being shipped to South Korea. The prototype air conditioners for Japanese customers are about to complete the inspection. Mingsheng (MS) Company has its own laboratory.
| serial no. | specification | technical paramter |
| 1 | Model | KC-35/DT-cooling only |
| 2 | Rated Cooling Capacity(W/BTU) | 3500 W / 11942 BTU |
| 3 | Energy Efficiency Ratio (W/W) | 2.65 |
| 4 | Rated Voltage(V) | 220 |
| 5 | Rated Frequency(Hz) | 50 |
| 6 | Rated Cooling Power(W) | 1320 |
| 7 | Rated Cooling Current (A) | 6.1 |
| 8 | Maximum Input Power(W) | 1780 |
| 9 | Maximum Input Current(A) | 8.3 |
| 10 | Allowable Pressure of Refrigeration system(MPa) | 2.7 |
| 11 | Refrigerant and Charge Amount | R410A:900g |
| 12 | Circulating Air Volume(m³) | 550 |
| 13 | Noíse dB(A) - hoistway/car | 52/40 |
| 14 | Protection Category against Electric Shock | I |
| 15 | Waterproof Grade | IPx4 |
| 16 | N.W. (kg) | 52 |
| 17 | Unit Size | 585*670*442 mm |
theory
During the cooling process, the compressor compresses the gaseous refrigerant into a high-temperature and high-pressure gas, which is then sent to the condenser. In the condenser, the refrigerant dissipates heat and condenses into a high-pressure liquid. After being depressurized by the throttling device, it enters the evaporator. In the evaporator, the low-pressure refrigerant rapidly vaporizes, absorbing a large amount of heat from the surroundings, thus cooling the indoor air. The vaporized refrigerant then returns to the compressor, and the cycle repeats.
During the heating process, the flow direction of the refrigerant is changed by the four-way valve, enabling the condenser and the evaporator to exchange their functions. This causes the indoor air to be heated up, completing the heating cycle.
